TAYLORMADE SIM Max 5-PW/AW Steel
SIM Max Irons Features & Technologies
Unlocking better performance with intelligent shaping and proven innovations. We have designed SIM Max to deliver a forged-like feel in a distance iron.
Revolutionary Speed Bridge technology strategically supports the topline of the iron to unlock explosive distance and forgiveness with improved sound and feel.
ECHO® Damping System
Designed with energy channeling geometry to quickly eliminate harsh vibrations at impact delivering forged-like feel without sacrificing face flexibility.
Patented TaylorMade technology engineered to maximize face flexibility for increased ball speed and forgiveness on low face strikes.
Ultra-thin 1.5mm face design with Progressive Inverted Cone Technology delivers extreme ball speed across the face with an enhanced sweet spot designed to promote a straighter ball flight.
Progressive Inverted Cone Technology
Engineers progressively positioned ICT towards the toe in both SIM Max and SIM Max OS to generate a draw bias in the longer irons and counteract the common right miss.
Forgiving Shape Design
The head is shaped to deliver an unmatched combination of distance, forgiveness, and playability. Designed with a large face area to increase stability and wide sole geometry for forgiving turf interaction.
Low Center of Gravity
A wide sole geometry, lightweight fluted hosel, 360° undercut and ultra-thin face shift mass from high in the clubhead down into the bottom of the sole for a low and back CG resulting in high, penetrating ball flights.
CLUB 4 5 6 7 8 9 PW AW SW LW LOFT 19.0° 21.5° 25.0° 28.5° 32.5° 38.0° 43.5° 49.0° 54.0° 59.0° LIE 61.5° 62.0° 62.5° 63.0° 63.5° 64.0° 64.5° 64.5° 64.5° 64.5° OFFSET 5.8mm 5.2mm 4.7mm 4.2mm 3.5mm 3.0mm 2.6mm 2.0mm 1.5mm 1.5mm BOUNCE 2° 3° 5° 5° 6.5° 7° 7.5° 7.5° 9° 9° LENGTH 39.125″ 38.50″ 37.88″ 37.25″ 36.75″ 36.25″ 35.75″ 35.50″ 35.25″ 35.00″ SWING WEIGHT (ST/GR) D1/D0 D1/D0 D1/D0 D1/D0 D1/D0 D1/D0 D1/D0 D1/D0 D3/D1 D3/D1 SWING WEIGHT (WOMEN’S) C2 C2 C2 C2 C2 C2 C2 C2 C4 C4 HAND RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH/LH RH

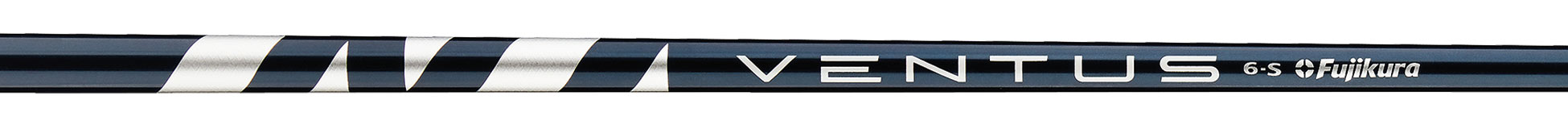

Flex Weight Torque Tip Size Launch Spin S 76g 2.8 .370 Mid-High Mid-High R 66g 3.0 .370 High Mid-High A 56g 3.4 .370 High High

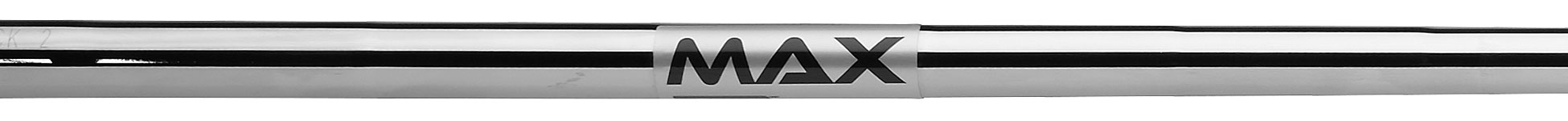

KBS MAX 85
Flex Weight Torque Tip Size Launch Spin S 93.3g 2.1 .370 High High R 91.8g 2.1 .370 High High

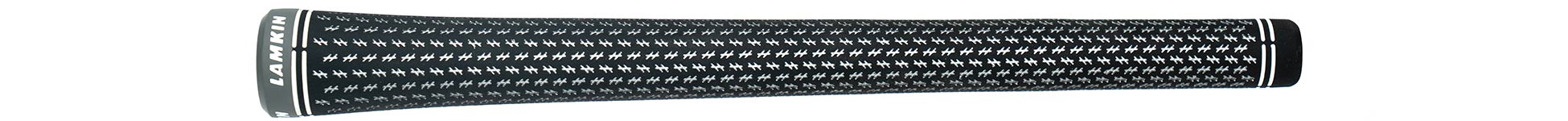

Lamkin Crossline 360
Model Color Size Weight Type Butt Size Feel Logo Crossline 360 Black/Grey Standard 47g Reminder .600 Textured TaylorMade
